lighting
LB222 SERIES

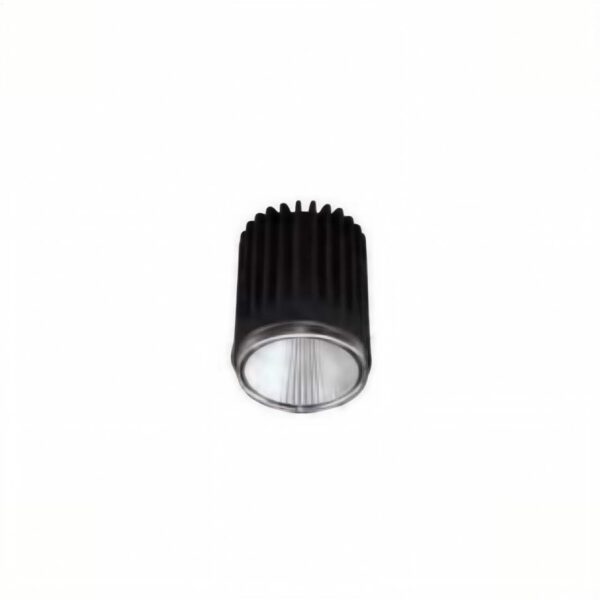

- The LB222 Series PAR16 spot LED downlight is designed to replace halogen spot light, delivering halogen-like accent beam.
- The LED module offers high lumen output and colour rendering index of over 90, and is available with a beam angle of 40° or 60° .

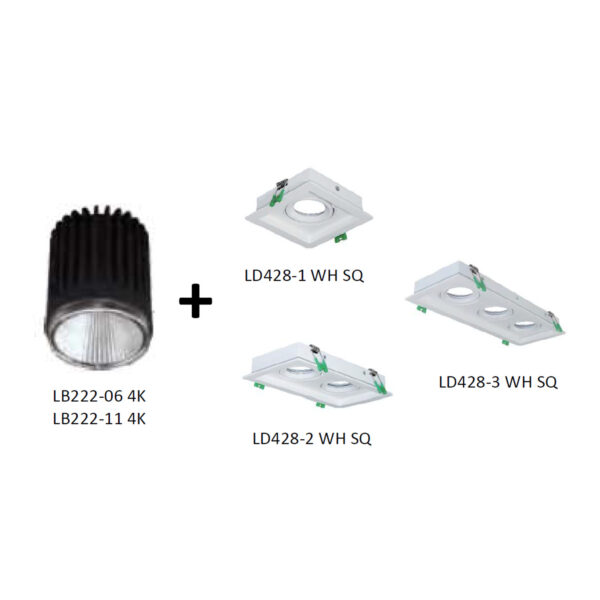

- The module can be fitted into a LD428 housing kit, which is available in single, twin or triple versions.
- This series of modern downlight is particularly suitable for shopping mall, hotel, exhibition hall and museums.
- TRIAC Dimmable
- MODULE
- HOUSING KIT
- APPLICATIONS
- DOWNLOADS
- Reviews (0)
| MODEL | INPUT | POWER | LUMEN | COLOUR TEMP | CRI | DIMENSIONS(Ø×H) | DIMMABLE | FITTING COLOUR |
|---|---|---|---|---|---|---|---|---|
| LB222-06 4K | 230-240V | 11W | 990lm | 4000K | >90Ra | 46x59mm | Yes | Black |
| LB222-11 4K | 230-240V | 15W | 1350lm | 4000K | >90Ra | 60x82mm | Yes | Black |
| MODEL | DESCRIPTION | DIMENSIONS(Ø×H) | CUT OUT SIZE(Ø) | FITTING COLOUR | COMPATIBLE MODULE |
|---|---|---|---|---|---|
| LD428-1 WH SQ | Single square housing kit | 110x110x30mm | 95x95mm | White | LB222 |
| LD428-2 WH SQ | Twin head square housing kit | 205x110x30mm | 190x95mm | White | LB222 |
| LD428-3 WH SQ | Triple head square housing kit | 290x110x30mm | 275x95mm | White | LB222 |
- Ancient architecture
- Art gallery
- Commercial
- Hotel
- Meseum
- Restaurant
