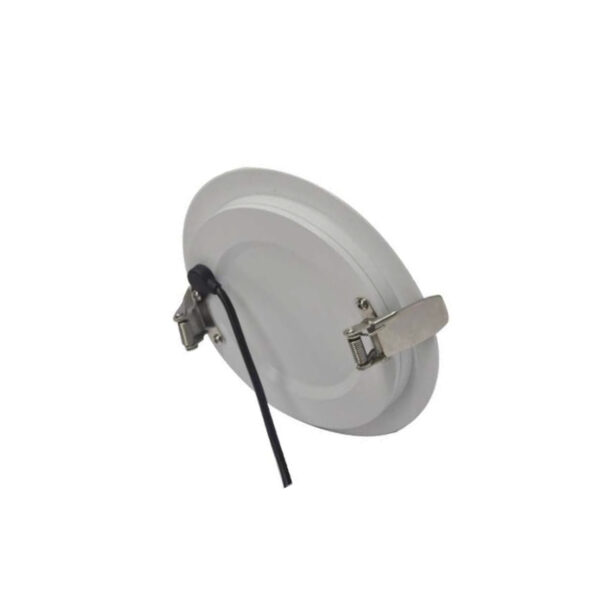

ULTRA SLIM DOWNLIGHT
- The BT2 Series downlight is characterized by a ultra slim profile design allowing it to be mounted without ceiling constraints;
- Full aluminium body allows high efficient heat dissipation;
- It delivers comfortable soft glow light output and uniformity utilizing the edge-lit technology;
- Insulation coverable LED driver with large screw terminals for easy installation;
- ICF-rated and IP54, 5-year warranty.
- Suitable for most brands dimmers.
- Standard fitting is white trim, colored trims is available upon on request.
- 5-year warranty
- Non-dimmable
- Description
- Code
- Options
- Application
- Download
Description
- The BT2 Series downlight is characterized by a ultra slim profile design allowing it to be mounted without ceiling constraints;
- Full aluminium body allows high efficient heat dissipation;
- It delivers comfortable soft glow light output and uniformity utilizing the edge-lit technology;
- Insulation coverable LED driver with large screw terminals for easy installation;
- ICF-rated and IP54, 5-year warranty.
- Suitable for most brands dimmers.
- Standard fitting is white trim, colored trims is available upon on request.

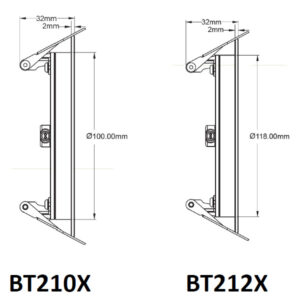

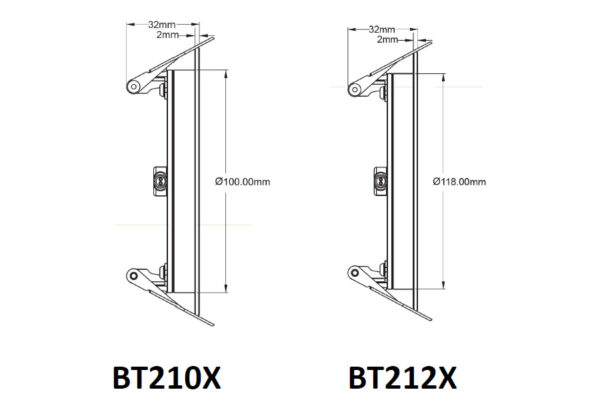

| MODEL | INPUT | POWER | LUMEN | COLOUR TEMP | CRI | DIMENSIONS(Ø×H) | CUT OUT SIZE(Ø) | FITTING COLOUR |
|---|---|---|---|---|---|---|---|---|
| BT2103 | 230-240V | 9W | 700lm | 3000K | >80Ra | 120×32mm | 100mm | White |
| BT2104 | 230-240V | 9W | 700lm | 4000K | >80Ra | 120×32mm | 100mm | White |
| BT2106 | 230-240V | 9W | 700lm | 6000K | >80Ra | 120×32mm | 100mm | White |
| BT2123 | 230-240V | 12W | 1000lm | 3000K | >80Ra | 145×32mm | 120mm | White |
| BT2124 | 230-240V | 12W | 1000lm | 4000K | >80Ra | 145×32mm | 120mm | White |
| BT2126 | 230-240V | 12W | 1000lm | 6000K | >80Ra | 145×32mm | 120mm | White |
- Ancient architecture
- Art gallery
- Commercial
- Hotel
- Meseum
- Restaurant
